3528SMD贴片软条灯 XY-3528-60D


Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD 3528
  • Input Voltage(V): AC220
  • Lamp Luminous Flux(lm): 210
  • CRI (Ra>): 84
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Certification: CE, RoHS
  • Emitting Color: Yellow
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Xing Yuan or OEM
  • Model Number: XY-3528-60D
  • Strip Size: 8.0*6.5MM or 11.0*6.5MM
  • LED Qty: 60pcs SMD
  • Color Available: red, yellow, blue, green, white, warm white

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 5~15 days up to the quantity

Specifications

>> 3-Gen LED Source
>> Various colors available.
>> Waterproof IP67
>> 12 Months warranty

3528 LED Strip Light Serise





Description:



                                Material:  PVC, 3528 LED
                          LED Qty:  60pcs SMD
                          Power:  4W/Meter
                          Imput Voltage:  AC220V
                          Luminous Flux (lm):  210 LM

                          Condition Temperature:   -20-50°C

                          Colour Rendering Index:  84Ra

                          Strip Size:  13.5*6.5MM  (wide board, copper wire)

                                              8.0*6.5MM (narrow board, aluminium wire)

                          Packing:  100 meterS / roll  (can be ordered by 1M as a unit)

                          Waterproof:  IP67







Applications:



                      1)  Architectural decorative lighting
                      2)  Archway, canopy and bridge edge lighting
                      3)  Amusement park, theater and aircraft cabin mood lighting
                      4)  Emergency hallway lighting
                      5)  Auditorium walkway lighting
                      6)  Stairway accent lighting
                      7)  Concealed lighting
                      8)  Backlighting for signage letters
                      9)  Channel letter lighting
                     10) Emergency exit path lighting
                     11) Cove lighting















Features:



*  PVC tube provides good waterproof and can be used both indoor & outdoor
*  Solid-state for high vibration resistance and good flexibility for any shape
*  Independent LED, one led broken will not affect next leds

 Can be cut for a shorter length

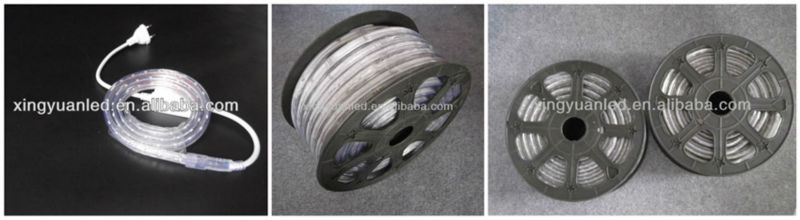

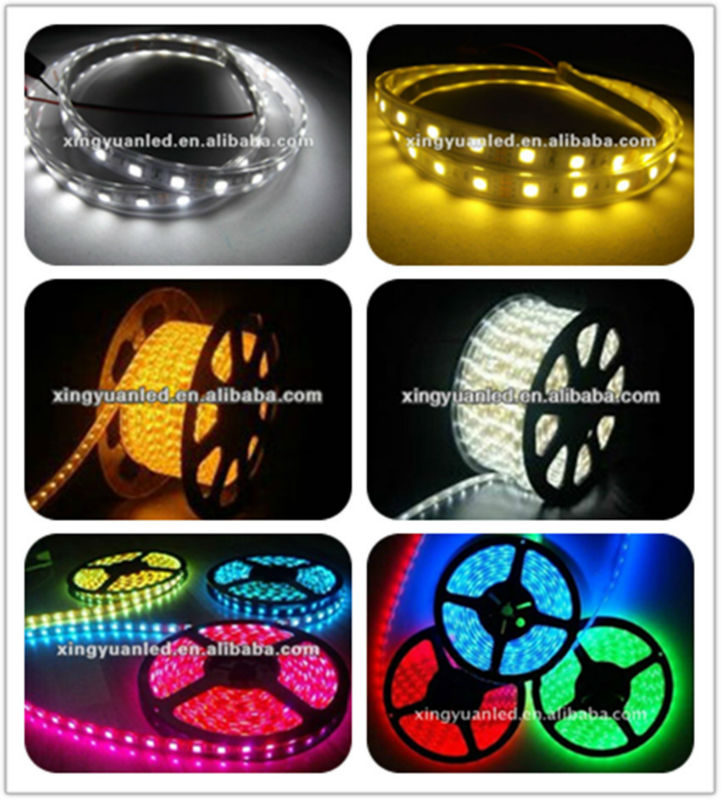

Photo shows:
